ThermicRoll® EOLO®
Winding industrial door ThermicRoll® fundamental feature is the incomparable wind resistance. EOLO is perfect in situations where air movements are significant. The EOLO is designed for any industry in which large exits or egress openings require protection.
Features
Features of the ThermicRoll® EOLO®
EOLO can do what the traditional roller shutter cannot, now covering areas up to 13×8 meters. The robust aluminium curtain wraps the top roll directly driven by the large motor, which requires no spring balancing system, minimizing routine maintenance.
| PARAMETER | SPECIFICATIONS |
| Maximum dimensions (L x H) | 12000 x 6000 mm |
| Opening speed | ~ 0.1 m/s |
| Closing speed | ~ 0.1 m/s |
| Structure | Galvanized or painted steel (optional) |

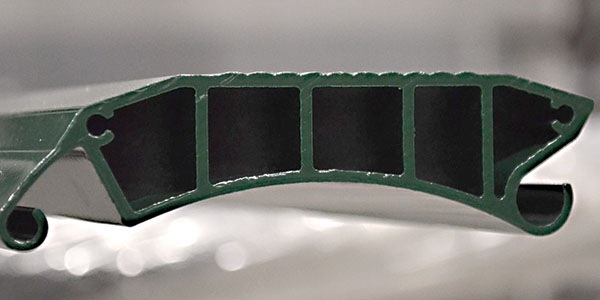

| Coat | Double wall-mounted profiles, natural aluminium NOT COIBENTED Micro-profile profiles on the outside, smooth inner side with inverted shell Aluminium wall sp = 2 mm; profile height = 90 mm approx. |
| Control panel (EN 13241-1) | Electro-mechanical 380 V with men’s operation |
| Guide rails | Zinc plated |
| Thermal coefficient (EN ISO 12567-1) | U = 5,5 W/m2K |
| Operating temperature | – 30°C + 70°C |
| Soundproofing coefficient | RW = 25 dB |
| Wind Load L / H 5000 x 6000 mm L / H 7000 x 6000 mm L / H 12000 x 6000 mm |
Class: 4 3 2 |
| Power supply | 400 V |
| Frequency | 50 Hz |
| Emergency crank handle | No |
| Maintenance user manual | Standard |
| Identification plates | Standard |
| Durability | 200,000 opening/closing cycles |
| Warranty | 12 months |
