ThermicRoll® CLASSIC®

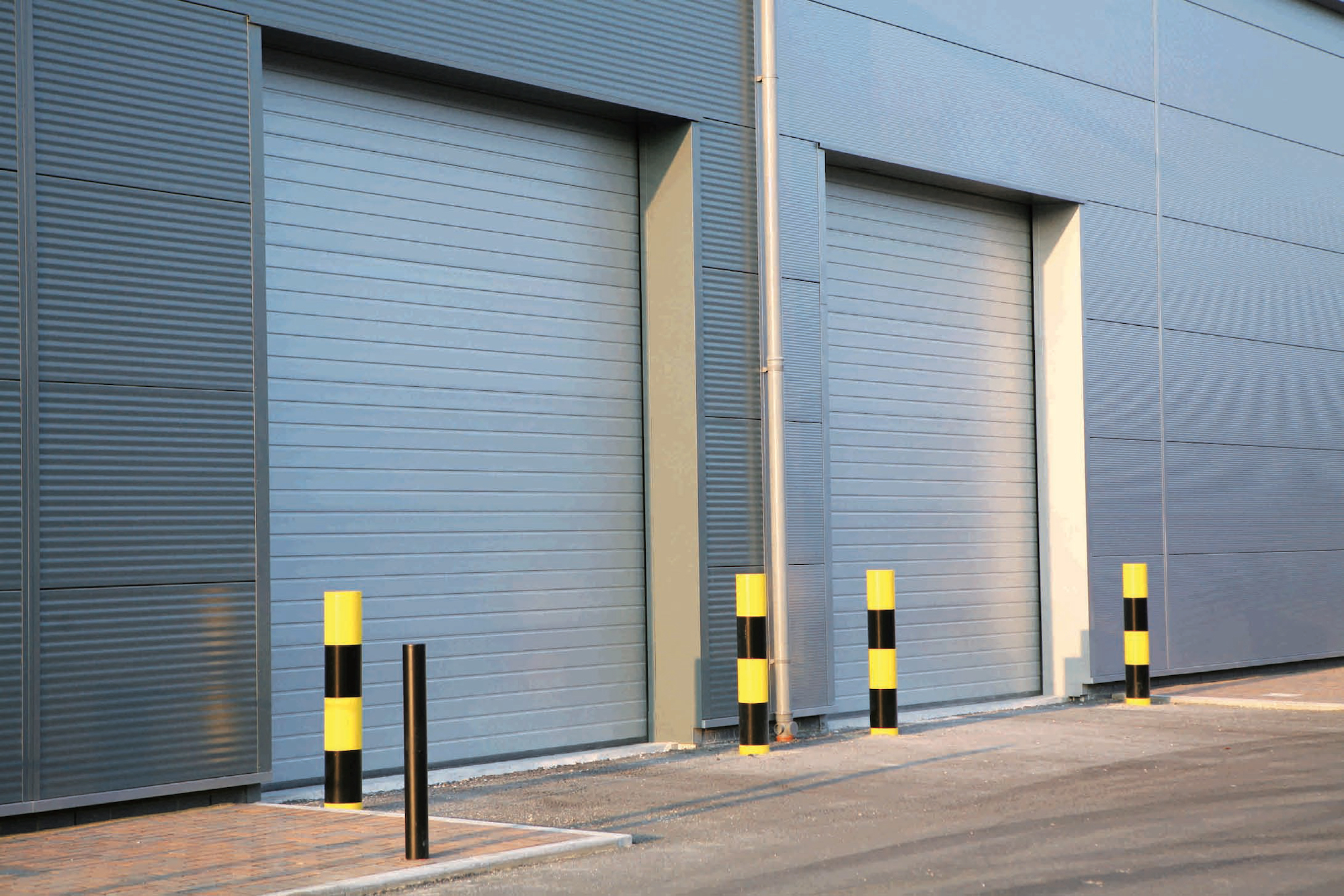

ThermicRoll® Classic industrial rolling shutters are suitable for a wide range of industrial environments where an accessible, economical and the space-saving industrial door is required. The quick-action of rolling shutters from the Classic line has an unbeatable value for money and minimal maintenance.

Aluminium or double-walled steel panels

Features

Features of the ThermicRoll® CLASSIC®

The insulated curtain of the industrial damper consists of aluminium or double-walled steel panels. This curtain then wraps on the top roll of the door, which is directly driven by the doors larger motor. In addition, Classic roller shutters can be equipped with polycarbonate windows to maximize interior lighting.

Finally, the size of the winding is minimal. It does not require any spring balancing system.

PARAMETER	SPECIFICATIONS
Maximum dimensions (L x H)	7000 X 5000 mm
Opening speed	~ 0.1 m/s
Closing speed	~ 0.1 m/s
Structure	Galvanized or painted steel (OPTIONAL)
Coat	Oxidized satin-finished aluminium: sp = 22 mm Pre-coated steel: sp = 22 mm Epoxy powder coating (OPTIONAL)
Control panel (EN 13241-1)	380 V
Power supply	400 V
Frequency	50 Hz
Limit switch	Mechanical
Safety coast[EN 13241]	Anti-crushing sensor (OPTIONAL)
Operation and maintenance manual	Standard
Identification plates	Standard
Durability	200,000 opening/closing cycles
Warranty	12 months
